U.FL Plug to SMA Jack, RF / Coaxial Cable Assembly, RG113 Patch Cord

Feature

● Product specifications, various wire colors

●Excellent flexibility, low standing wave ratio, strong anti-interference ability

●good shielding performance

●Wire length customer customization

●ROHS 2.0 Products comply with ROHS 2.0

●Electroplating salt spray can pass 48H

Send email to us

If you want more antenna products, please click here.

Product Detail

Product Tags

Application

●The wire is Teflon insulated series flexible coaxial cable, suitable for microwave equipment, wireless communication equipment
● Widely used, 2G, 3G, 4G, 5G, GPS, WIFI and other frequency external product extension cables

RF Cable

This product is SMA(J) to IPEX, which is very flexible. Currently, the conventional wire colors used by MHZ-TD are black, white, gray, red, blue (other colors can be produced), and the length can be customized according to customer needs , the product has fine workmanship
The connector IPEX is the first generation terminal of IPEX company
Description of letters appearing in MHZ-TD RF patch cord products:
"P" for male, "J" for female, "RP" for reverse polarity
An example is as follows:
SMA (J) means SMA female head female pin
RP-SMA(J) means SMA female male pin
SMA (P) means SMA male male pin
RP-SMA (P) means SMA male and female pins

MHZ-TD-A600-0012 Electrical Specifications
Frequency range（MHz）	0-6G
Conduction impedance（Ω）	0.5
Impedance	50
VSWR	≤1.5
(Insulation resistance)	3mΩ
Maximum input power（W）	1W
Lightning protection	DC Ground
Input connector type	SMA
Mechanical Specifications
Dimensions (mm)	150mm
Antenna weight（kg）	0.5g
Operating temperature（°c）	-40～60
Working humidity	5-95%
Cable color	black, gray, white，
Mounting way	pair lock

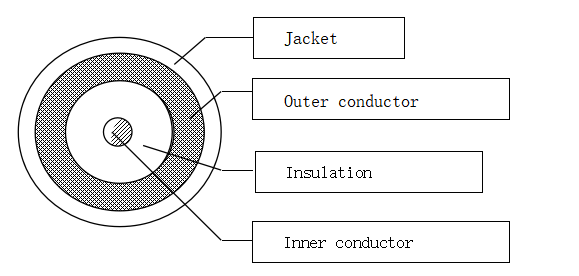

Cable structure diagram

Specification of cable

Item		NO	Materials and size
Inner conductor	Material	/	Silver plated copper wire
	Composition	mm	7/0.08±0.003
	OD	mm	Φ0.24
Insulation	Material	/	Teflon FEP(200 degrees of fluorinated ethylene propylene resin)
	Thickness	mm	0.21
	OD	mm	Φ0.68±0.03
	Color	/	transparent color
Outer conductor	Material	/	Tinned copper wire
	Form	/	Weave
	Density	%	93%(26（Mesh）； 80（Coding 5*16/0.05mm）)
	OD	mm	Φ0.88±0.05
Jacket	Material	/	Teflon FEP(200 degrees of fluorinated ethylene propylene resin)
	Thickness	mm	0.125
	OD	mm	Φ1.13±0.05
	color of sheath	/	Gray or black（Can also be processed according to customer requirements）
